High-End Vacuum Research

High-End Research Applications Using VERTEX Series Vacuum Spectrometers

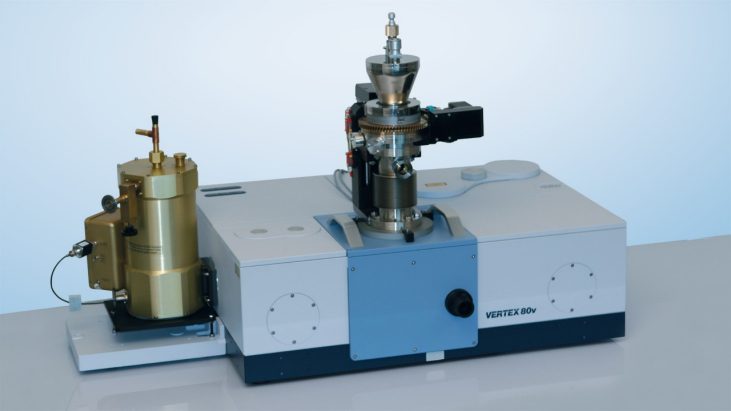

Bruker’s VERTEX 80v and VERTEX 70v vacuum FT-IR spectrometers provide highest flexibility and stability for advanced research applications. The entire vacuum optics design eliminates atmospheric disturbances in the resulting spectra and reduces artifacts caused by temperature fluctuations in the environment.

Description

Vacuum Advantages for FTIR Spectroscopy

No temperature fluctuation influenced by environment
No atmospheric absorbance masking weak spectral features or interfering with high spectral resolution features
No problems caused by fluctuations of the dry air purge supply
Highest stability and reproducibility
Utmost sensitivity

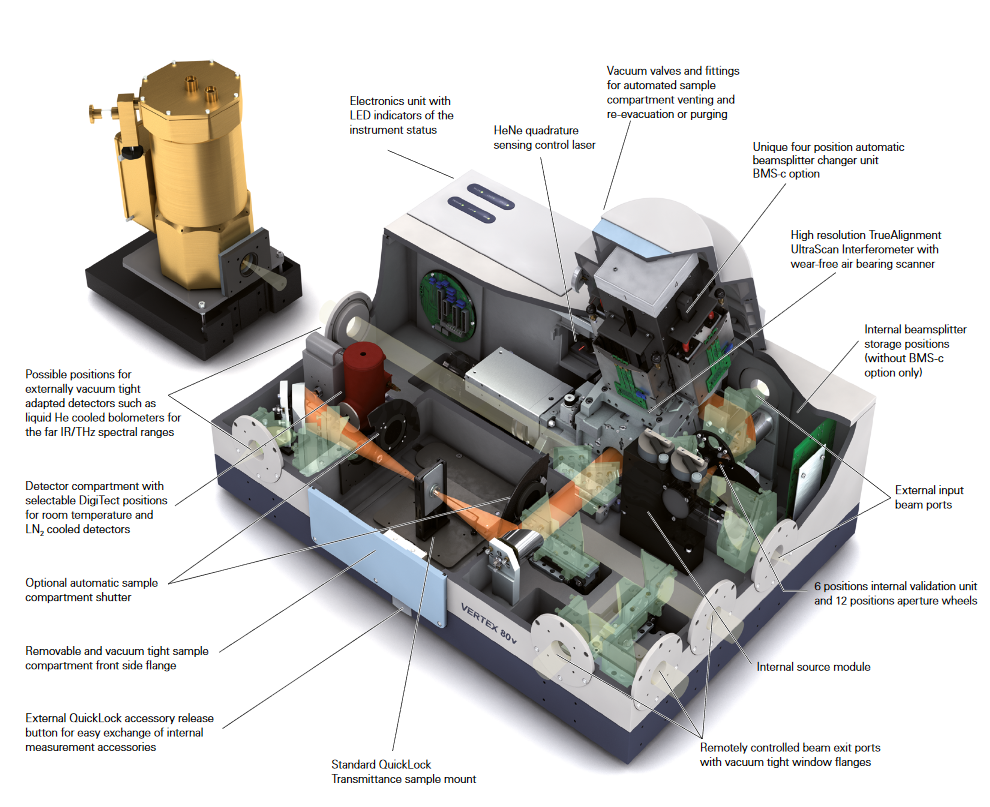

VERTEX Vacuum Features

Rapid evacuation by high speed, dry and noise-reduced vacuum pump
Four position automatic beamsplitter (BMS) exchange option for the VERTEX 80v vacuum optics bench
Automatic sample compartment shutter option for quick sample exchange and highest SNR
Permanently mounted windows or adjustable telescope windows e.g. if particular experiments require a purged sample compartment

Outstanding FIR/THz spectral range specification of VERTEX vacuum spectrometers

Superior sensitivity down to 50 cm^-1 using the RT DTGS detector
Access down to 10 cm^-1 using additionally the external water-cooled Hg arc FIR source
Numerous FIR BMSs for optimized performance and MIR-FIR wide range BMSs for easy operation available
Record sensitivity in FIR/THz spectral range down to 5 cm-1 using VERTEX 80v and liquid He cooled bolometers

Exciting possibilities with the verTera extension for VERTEX 80v

Integrated state of the art cw THz technology
Spectral range down to 3 cm^-1 (0.09 THz)
Effective spectral resolution better than 0.0007 cm^-1 (better than 20 MHz)
Same sample compartment and accessories for FT-IR and THz
Highest THz performance by vacuum and unique THz algorithm
Measurement of transmittance, reflectance and ATR
Ready to measure by push of a button (no preparation time)
FT-IR and THz mode controlled via powerful OPUS software

VERTEX 80v matchless step scan performance

Highest stepping rate up to 50 steps per second
Mechanical and effective positioning accuracy for the scanning mirror better than 1 nm
Best performance for time resolved and amplitude/phase modulation spectroscopy
Temporal resolution of 6 µsec using 24 Bit internal standard ADC
Temporal resolution down to the low nsec range with transient recorder board, fast detector and fast preamplifier
