Bruker FM: MIR-FIR/THz

MIR-FIR/THz Spectroscopy in One Step

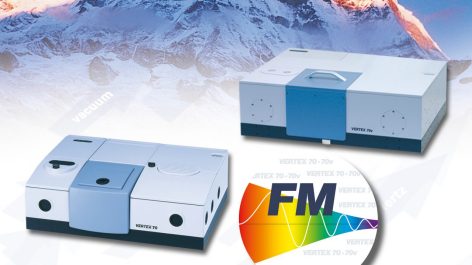

The unique Bruker FM technology for VERTEX 70v and INVENIO FT-IR research spectrometers which combines the wide spectral range beamsplitter, the wide range DTGS detector and the standard IR source to cover the spectral range from 6000 cm^-1 down to 50 cm^-1in one single scan for all types of transmittance, reflectance and ATR measurements.

Description

Additional Values of Bruker FM

Full mid and far IR spectrum in one go
Enormous time saving due to just one single measurement
Acquisition of the complete molecular vibrational spectral information
No break of purge or vacuum conditions for optical component exchange
No danger of touching or damaging expensive and sensitive optical components
No need for complex and demanding exchange devices
All optical components are insensitive to humidity

Main Application Fields of Bruker FM

Inorganic and organometallic chemistry
Semiconductor development and research
Studies on polymer filler material and color pigments
Geological and rock analysis (mining)
Pharmaceutical fillers and active agent measurements
Polymorphs differentiation
Crystallinity identification
Product and material comparison
Low temperature matrix isolation spectroscopy

Analysis of Polymer Fillers and Colored Pigments

Only one measurement per sample for the complete MIR-FIR/THz spectral range
Additional information of the inorganic filler materials in polymers
Simple polymer identification by using the dedicated FIR-MIR library

Identification of Sample Crystallinity

The unique Bruker FM technology offers the measurement of the complete FIR-MIR spectral range in one step and allows for simultaneous identification and polymorph screening of samples.

Geology and Metal Organic Chemistry

The FIR/THz spectral region plays a very important role for the study of inorganic substances which involve vibrations of heavier atoms, since many of their characteristic bands lies below 400 cm^-1.

MIR-FIR ATR Library
