Description
Design and functionality
The WPY series features a stainless steel weighing platform and a terminal comprising both, 5,7” TFT colourful touch screen display and a membrane keyboard. The system is ready to connect an additional weighing platform, and provides below functions:
- programming of display and functional keys,
- programming of infrared proximity sensors,
- designing printouts,
- designing text data that is displayed on terminal display.
The multifunctional WPY scales

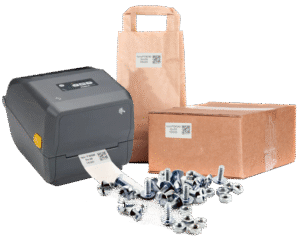

if connected to a label printer enables printing labels for matching goods weighed in industrial conditions.
The labelling system based on the labelling scales WPY series is dedicated to printing labels for matching weighed products in a packaging process.
Application
The device features simple structure and enables maximum automation of carried out weighing processes. Apart from standard weighing mode, the WPY series additionally allows for parts counting, labelling and formula making processes.
The universal software implemented in the terminal enables scales cooperation with barcode scanners, receipt printers, label printers, RFID scanners and PC peripherals (including mouse, keyboard and external data storage devices) all connectable to built-in interfaces RS232, USB and Ethernet.
The multifunctional WPY scales if connected to a label printer enables printing labels for matching goods weighed in industrial conditions. The labelling system based on the labelling scales WPY series is dedicated to printing labels for matching weighed products in a packaging process.
Models and Specifications
| Model | Maximum capacity [Max] | Minimum load | Readability [d] | Stabilization time | Weighing pan dimensions | OIML Class |
| WPY 1,5/F1(K,R) | 1.5 kg | 10 g | 0.5 g | 2 s | 300×300 mm | III |
| WPY 3/F1 (K,R) | 3 kg | 20 g | 1 g | 2 s | 300×300 mm | III |
| WPY 6/F1 (K,R) | 15 kg | 100 g | 5 g | 2 s | 300×300 mm | III |
| WPY 15/F1 (K,R) | 15 kg | 100 g | 5 g | 2 s | 300×300 mm | III |
| WPY 15/C2 (K,R) | 15 kg | 100 g | 5 g | 2 s | 400×500 mm | III |
| WPY 15/C3 (K) | 15 kg | 100 g | 5 g | 2 s | 500x700mm | III |
| WPY 30/F1 (K,R) | 30 kg | 200 g | 10 g | 3 s | 300×300 mm | III |
| WPY 30/C2 (K,R) | 30 kg | 200 g | 10 g | 3 s | 400×500 mm | III |
| WPY 30/C3 (K) | 30 kg | 200 g | 10 g | 3 s | 500x700mm | III |
| WPY 60/C2 (K,R) | 60 kg | 400 g | 20 g | 2 s | 400×500 mm | III |
| WPY 60/C3 (K) | 60 kg | 400 g | 20 g | 3 s | 500x700mm | III |
| WPY 150/C2 (K,R) | 150kg | 1 kg | 50 g | 3 s | 400×500 mm | III |
| WPY 150/C3 (K) | 150kg | 1 kg | 50 g | 3 s | 500x700mm | III |
| WPY 300/C2 (K,R) | 300 kg | 2 kg | 100 g | 3 s | 400×500 mm | III |
| WPY 300/C3 (K) | 300 kg | 2 kg | 100 g | 3 s | 500x700mm | III |
