Description
The MA.R series
This series has been equipped with brand new readable LCD display providing an extra text line for information such as supplementary messages and data, e.g. product name or tare value.
The moisture analyzer, using respective pictograms, signalizes currently activated mode, computer connection and functions, both balance and service ones.

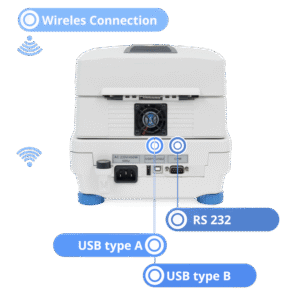

The MA.R series is enriched with various interfaces: RS232, USB type A,
USB type B and Wi-Fi®. The moisture analyzer is housed in a plastic casing.
Direct access to information
It is possible to access functions and databases directly, using keyboard soft keys.
- Database – access to databases
- Function – access to basic functions
- F1 and F2 – programmable function keys and menu navigation keys
- Reports – access to database of drying process reports
- Profile – access to parameters settings
- Sample – access to products database
Models ja Specifications
| Model | MA 50.R (NS, WH) | MA 50/1.R (NS, WH) | MA 110.R (NS, WH) | MA 210.R (NS, WH) |
| Maximum capacity [Max] | 50 g | 50 g | 110 g | 210 g |
| Readability [d] | 1mg | 0.1 mg | 1 mg | 1 mg |
| Adjustment | external | external | external | external |
| Moisture content readability | 0,001 % | 0,0001 % | 0,001 % | 0,001 % |
| Heating module | IR emitter( metal heater, halogen) | IR emitter( metal heater, halogen) | IR emitter( metal heater, halogen) | IR emitter( metal heater, halogen) |
| Drying temperature range | Max 160 °C (160 °C, 250 °C) | Max 160 °C (160 °C, 250 °C) | Max 160 °C (160 °C, 250 °C) | Max 160 °C (160 °C, 250 °C) |
| Heating module power | 450 W | 450 W | 450 W | 450 W |
| Maximum sample height | 20 mm | 20 mm | 20 mm | 20 mm |
| Weighing pan dimensions | ø90, h= 8 mm | ø90, h= 8 mm | ø90, h= 8 mm | ø90, h= 8 mm |
| Drying method | 4 drying profiles (standard, fast, step, mild) | |||
| Finish mode | 4 modes (automatic, manual, time-defined, user-defined) | |||
The results
The results obtained using the moisture analyzer (the final result of the drying process):
- % M – the mass loss in %; displays the mass change recorded during the drying process, expressed as a percentage,
- % D – the dry mass obtained during the drying process, expressed as a percentage; the result is the portion of the sample that remains on the weighing pan after the moisture has evaporated,
- % R – the ratio of moisture content to dry mass, obtained during the drying process, expressed as a percentage; the result is the portion of the sample that evaporated during the drying process,
- g – the sample mass after drying.
Exchange of information within the system is performed by means of USB port on bi-directional basis. It is possible to import and export databases using memory sticks.
