Description
MA.X2.A series

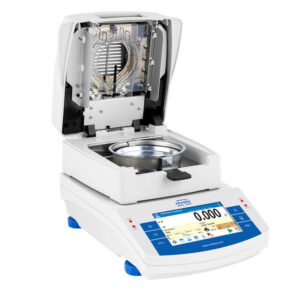

is equipped with innovative system: the drying chamber can be opened and closed automatically using button or proximity sensors.
Such solution allows:
- Maintaining moisture analyzer clean – operator does not touch moisture analyzer’s housing.
- Removing any shocks caused by manual closing of the chamber – the chamber closes automatically and always with the same intensity.
- Achieving high repeatability of opening and closing the drying chamber.
- Enhancing drying process automation.
- Enhancing safety of operation by eliminating contact with hot components of drying chamber.
- Improving operation ergonomics.

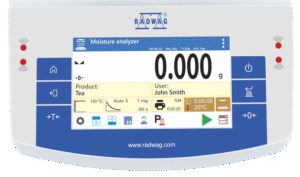

- MA.X2.IC.A series features user-friendly colour touchscreen. Free configuration of the control panel can be done by means of hotkeys, customizable information fields and programmable labels. Drying process can be carried out for any temperature and – thanks to databases – particular drying process may be set for a specific product.
Highlights of X2 Series moisture analyzers:
- Automatic opening and closing of the drying chamber
- 5” capacitive colour touchpad
- Modern interface
- Uncomplicated, intuitive operation
- Programmable display
- Drying profiles (standard, mild, step, fast)
- GLP/GMP printouts-reports
- Repeatable and customized applications
- Work optimization due to the use of halogen lamps
- Models and Specifications
Model MA 50.X2.A (.NS, .WH) MA 50/1.X2.A (NS, WH) MA 110.X2.A (NS, WH) MA 200/1.X2.A (NS, WH) MA 210.X2.A (NS, WH) Maximum capacity [Max] 50 g 50 g 110 g 200 g 210 g Readability [d] 1 mg 0.1 mg 1 mg 0.1 mg 1 mg Adjustment external external external external external Weighing chamber automatic automatic automatic automatic automatic Heating module IR emitter( metal heater, halogen) IR emitter( metal heater, halogen) IR emitter( metal heater, halogen) IR emitter( metal heater, halogen) IR emitter( metal heater, halogen) Drying temperature range Max 160 °C (160 °C, 250 °C) Max 160 °C (160 °C, 250 °C) Max 160 °C (160 °C, 250 °C) Max 160 °C (160 °C, 250 °C) Max 160 °C (160 °C, 250 °C) Heating module power 450 W 450 W 450 W 450 W 450 W Maximum sample height 20 mm 20 mm 20 mm 20 mm 20 mm Weighing pan dimensions ø90, h= 8 mm ø90, h= 8 mm ø90, h= 8 mm ø90, h= 8 mm ø90, h= 8 mm Drying method 4 drying profiles (standard, fast, step, mild) Finish mode 4 modes (automatic, manual, time-defined, user-defined)
Capacity and
temperatureMA.X2.IC.A maximum capacity ranges from 50g/0.1mg to 210g/0.1mg. Moisture content is measured with the 0.01% accuracy (0.001 % for samples bigger than 1.5g). The maximum drying temperature is 160˚C (there is an optional moisture analyzer with 250˚C maximum temperature).
An additional element for moisture analyzers that improves their functionality is a water vapour permeability determination set used in tanning industry for determining hygienic properties of leather.
