Description

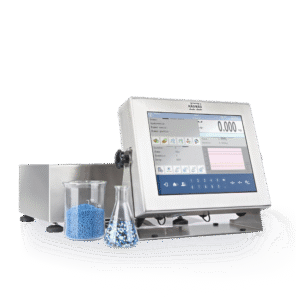

The HY10 scales
features terminal PUE HY10 series in stainless steel housing and a single load cell weighing platform in mild steel powder coated version. The HY10 series scales features mild steel powder coated construction with stainless steel weighing platform.The terminal PUE HY10 series features a 10,1” colourful touch screen display, keyboard with numeric and function keys.
The scales enable cooperating with an additional weighing platforms.Additionally, the HY10 series offers full functionality available in the terminal PUE HY10 series:
- programmable display and function keys,
- designing custom printout templates,
- designing text data indicated on terminal display.
Multifunctional scales HY10 series are offered with a terminal connected to a weighing platform through a cable.
Scales HY10 series is available in dual range version on surcharge.
Smart Editor
The application is intended for scales equipped with the HY10 terminal. It does not require any additional installations. Enter the terminal’s address in the browser address field and log in.
The application enables:
– remote databases editing
– import of images from the graphic file to the scale
– labels import from lb file to the scale
– creating and preview of report, e.g. Workflow
– dosing processes operation
Smart Display
The application allows to personalise the scale screen and display it on a computer. The Smart Display enables customization of the display screen in a simple and clear way.
Place the individual elements on a grid visible on the screen. These elements can be further scaled to suit user needs.
When operated directly on the scale, the user gets a new, refreshed look with the possibility of any configuration of the home screen.
If the application is operated via a computer browser, it enables remote control of the desktop or setting larger mass indication window.
Models and Specifications
| Models | Maximum capacity [Max] | Minimum load | Readability [d] | Verification unit [e] | Weighing pan dimensions | Display cable length | OIML Class |
| HY10.1,5.F1.K | 1.5 kg | 10 g | 0.5 g | 1 g | 300×300 mm | 1 m | III |
| HY10.3.F1.K | 3 kg | 20 g | 1 g | 1 g | 300×300 mm | 1 m | III |
| HY10.6.F1.K | 6 kg | 40 g | 2 g | 2 g | 300×300 mm | 1 m | III |
| HY10.15.F1.K | 15 kg | 100 g | 5 g | 5 g | 300×300 mm | 1 m | III |
| HY10.15.C2.K | 15 kg | 100 g | 5 g | 5 g | 400×500 mm | 2.5 m | III |
| HY10.15.C3.K | 15 kg | 100 g | 5 g | 5 g | 500×700 mm | 2.5 m | III |
| HY10.30.F1.K | 30 kg | 200 g | 10 g | 10 g | 300×300 mm | 1 m | III |
| HY10.30.C2.K | 30 kg | 200 g | 10 g | 10 g | 400×500 mm | 2.5 m | III |
| HY10.30.C3.K | 30 kg | 200 g | 10 g | 10 g | 500×700 mm | 2.5 m | III |
| HY10.60.C2.K | 60 kg | 400 g | 20 g | 20 g | 400×500 mm | 2.5 m | III |
| HY10.60.C3.K | 60 kg | 400 g | 20 g | 20 g | 500×700 mm | 2.5 m | III |
| HY10.150.C2.K | 150 kg | 1 kg | 50 g | 50 g | 400×500 mm | 2.5 m | III |
| HY10.150.C3.K | 150 kg | 1 kg | 50 g | 50 g | 500×700 mm | 2.5 m | III |
| HY10.300.C2.K | 300 kg | 2 kg | 100 g | 100 g | 400×500 mm | 2.5 m | III |
| HY10.300.C3.K | 300 kg | 2 kg | 100 g | 100 g | 500×700 mm | 2.5 m | III |
