Description
- Standard microplate 96 and 384 well formats
- Reusable plates
- User friendly software for automated data acquisition and evaluation
- Configuration for MIR or NIR
- Usable for different formats

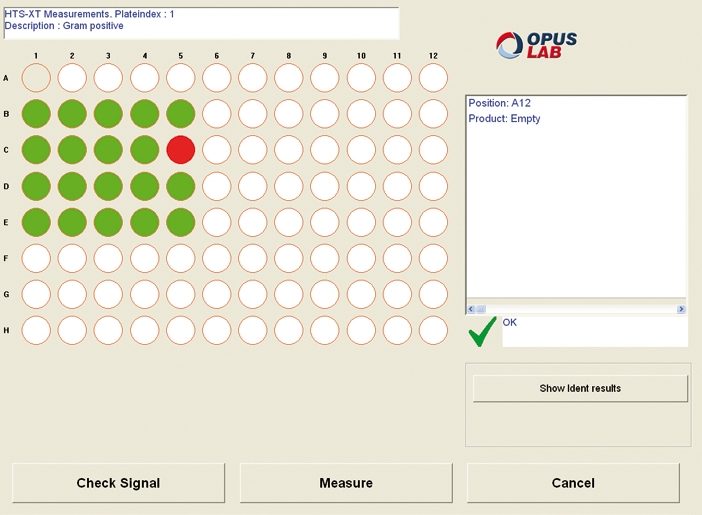

The microplate extension HTS-XT allows the application of FT-IR spec-troscopy as method for high-throughput screening. The acquisition, control and evaluation of spectral data from large numbers of samples are performed by the OPUS/LAB software. The HTS-XT is an external module that can be connected to different Bruker Optics FT-IR spec-trometers. Depending on its configuration it can be used for measure-ments in the mid infrared to the near infrared and even the VIS range.

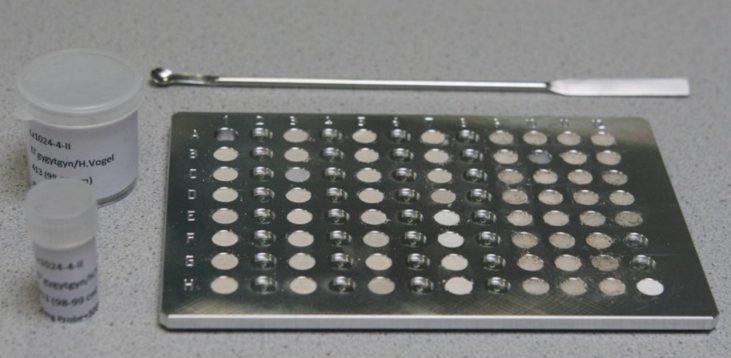

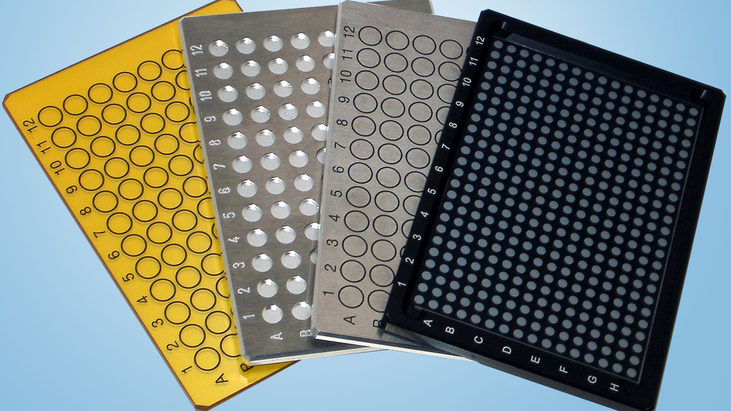

The sampling plates for the IR analysis correspond to the standardized 96-, 384 or 1536-well microplate formats. For analysis, approximately 1-20 µl of a liquid sample are placed on a single sampling position of the microplate and dried. The sample volume prepared depends on sample form, measurement mode and sample plate design. Solid samples are first dried and ground before they are filled into a well of the microplate. The loaded sample plate is moved into the sealed optics by a motorized drawer. Then the measurement of the microplate is performed fully automated in the measurement modes transmission and/or reflectance by successively moving each sample position into the focus of the IR beam.
